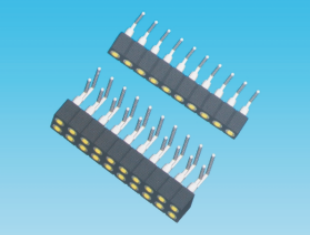

2.0mm 圆孔,单/双排,90度
Spec:2.0mm Pitch Machine Pin Socket
Single/Dual Row Right Angle
Plastics Height:2.8
Positions:1*2-1*40/2*2-2*40
材质:
外壳:黄铜,C3604
内爪(6爪):铍铜,C17200
电镀(外壳):
镀锡:2μm/80μ"镍,5μm/200μ锡
镀金:2μm/80μ"镍, 0.8μ"金
电镀(内爪):2μm/80U”镍底,0.8μ"金
适配公针: 0.40mm/0.60mm
阻燃等级:PPS UL94V-0
电气性能
额定电流:3Amps/contact max.
接触电阻:≤20mΩ/contact
绝缘电阻:≥1000MΩatV=100V
工作电压:60VAC/DC
物理性能:
平均插入力≠0.50:<90gm
平均拔出力≠0.50:>25gm
机械寿命:min 500
工作温度范围:-40°Cto+105°C
焊接温度:+255°C
